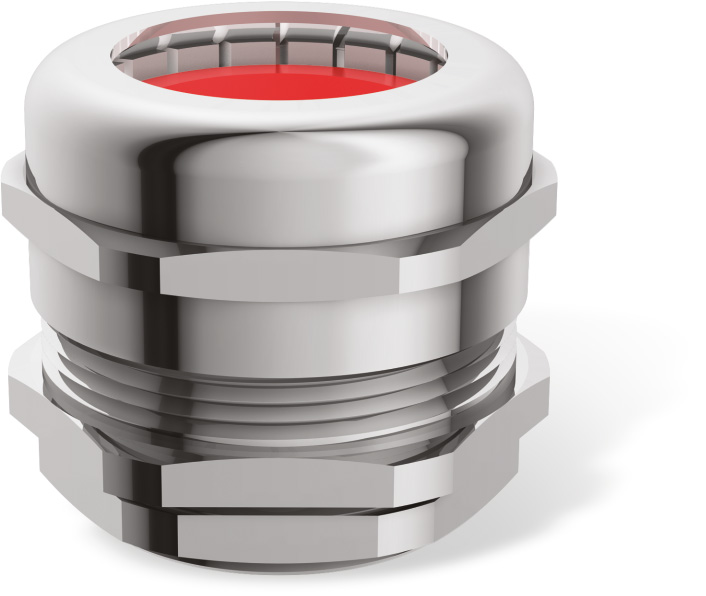

IP 68 Metric Threaded Single Compression Cable Gland

product
We are India's leading manufacturer, supplier, and exporter of Metric Threaded Single Compression IP 68 Cable Gland, IP68 Universal Cable Gland.
Type IP 68 Metric Threaded Single Compression Cable Gland
Gland Size M12 to M75
Gland Material Brass (CuZn39Pb3), Stainless Steel 316L
Thread Metric
IP Rating IP68
Operating Temperature Standard Seals -20°C to +90°C.
Cable Types Unarmoured
Finish Nickel Plated

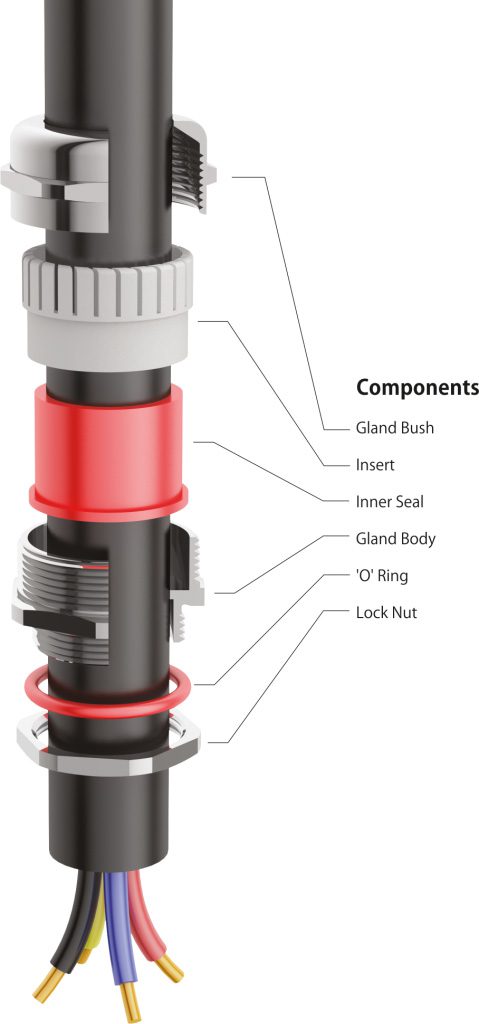

Accessories Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement

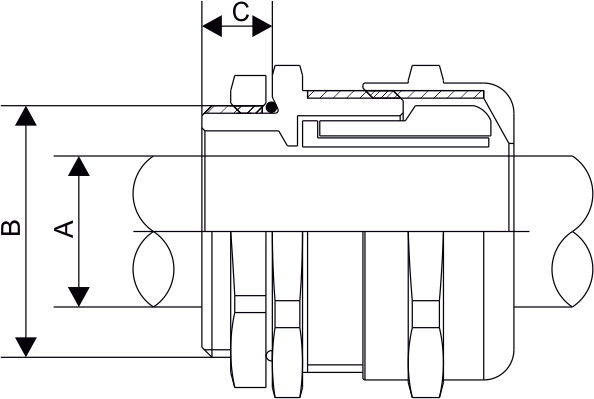

Size Chart / Specification of IP68 Cable Gland.

ORDER CODE GLAND SIZE THREAD SIZE 'B' THREAD LENGTH 'C' (mm) ACROSS FLAT CABLE DIA. RANGE 'A' (mm)
  METRIC METRIC SHORT LONG FLAT MIN MAX
MM-M12-6.5 X6 M12 M12 6 10 14 3 6.5
MM-M12-8 X6 M12 M12 6 10 17 4 8
MM-M16-8 X6 M16 M16 6 10 14 3 6.5
MM-M16-10 X6 M16 M16 6 10 20 6 10
MM-M20-12 X6 M20 M20 6.5 10 22 8 12
MM-M20-14 X6 M20 M20 6.5 10 24 10 14
MM-M25-14 X6 M25 M25 6.5 10 27 9 14
MM-M25-16 X6 M25 M25 7 12 27 11 16
MM-M25-18 X6 M25 M25 7 12 30 13 18
MM-M32-20 X6 M32 M32 8 12 40 13 20
MM-M32-25 X6 M32 M32 8 12 40 18 25
MM-M40-23 X6 M40 M40 8 15 44 15 23
MM-M40-28 X6 M40 M40 8 15 44 19 28
MM-M40-32 X6 M40 M40 8 15 50 22 32
MM-M50-29 X6 M50 M50 9 15 55 22 29
MM-M50-35 X6 M50 M50 9 15 55 27 35
MM-M50-38 X6 M50 M50 9 15 57 32 38
MM-M63-35 X6 M63 M63 10 15 68 29 35
MM-M63-44 X6 M63 M63 10 15 68 37 44
MM-M75-53 X6 M75 M75 15 20 85 43 53
MM-M75-60 X6 M75 M75 15 20 85 53 60
