E1W Type Double Compression
Heavy Duty Cable Gland.

product
We are India's leading manufacturer, supplier, and exporter of E1W Cable Gland for Steel Wire Armoured (SWA) & Aluminium Wire Armoured (AWA) Cables.

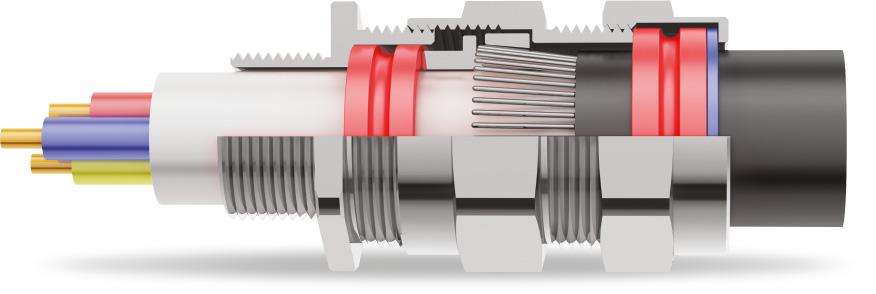

Type E1W Double Compression Heavy Duty Cable Gland
Cable Type Steel Wire Armoured (SWA) Aluminium Wire Armoured (AWA)
Application For use with all types of SWA cable for indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath.
Gland Material Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
Option Thread Metric, NPT BSP, BSPT
IP Rating IP66 & IP67
Operating Temperature Standard seals (Nitrile): -20°C to 80°C. on request (Silicone) : -60°C to +180°C
Seal Type Double compression sealing (Sealing on both outer and inner sheath)
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated

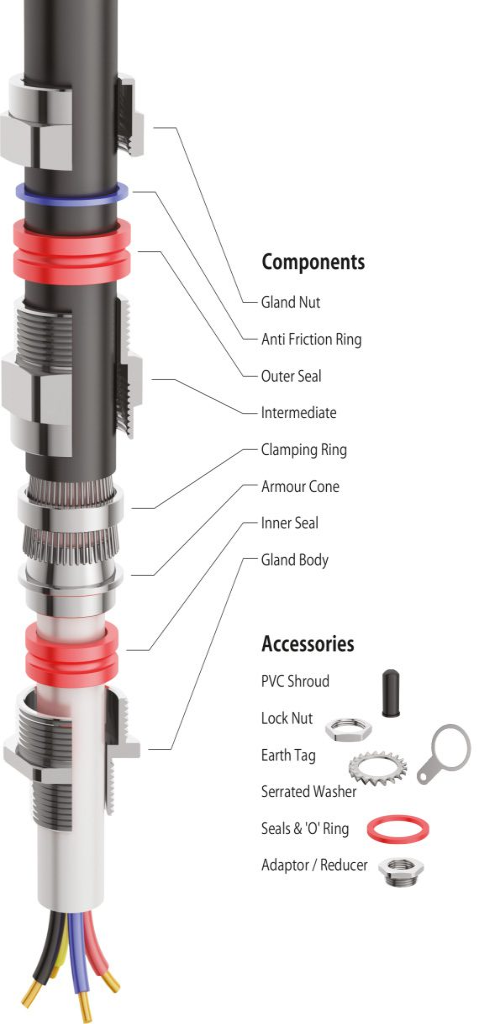

Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
AVAILABLE ENTRY THREAD “C” (ALTERNATE METRIC THREAD LENGTHS AVAILABLE)

Size Chart / Specification

ORDER CODE GLAND SIZE METRIC STANDARD THREAD LENGTH 'E' (METRIC) NPT THREAD LENGTH 'E' (NPT) CABLE DIA. RANGE 'A' (mm) CABLE DIA. RANGE 'B' (mm) ARMOUR RANGE STEPPED CONE (W) A/F A/C
  NPT MIN MAX MIN MAX MIN MAX MIN MIN
MM-E1W-20S16H X6 20S16H M16 10 3/8″ 20 3.2 8.6 6.2 13.1 0.8 1.25 24.5 27
