A1/A2 Type Cable Glands

product
We are India's leading manufacturer, supplier, and exporter of A1/A2 Type Cable Glands. ‘A’ type glands more commonly known as ‘stuffing’ glands. There are two types of ‘A’ gland. A1 and A2, A1 is retained on the cable whilst the ‘A2’ gland seals and retains on the cable.

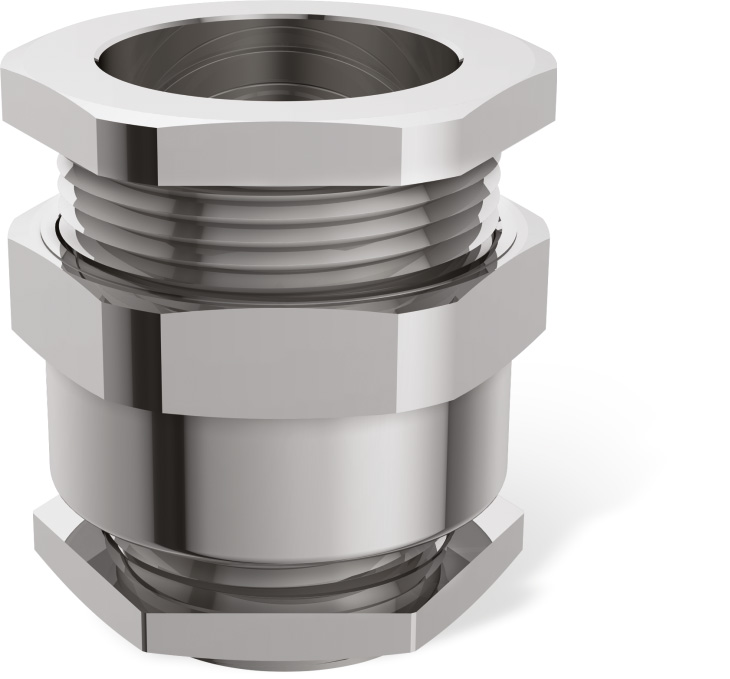

Type A1/A2 Type Single Compression Cable Gland
Application For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, unarmoured plastic or rubber sheathed cables
Gland Material Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
Option Thread Metric, NPT, BSP & PG
IP Rating IP66 & IP68
Seal Type Displacement type
Operating Temperature Standard seals (Nitrile): -20°C to +80°C. on request (silicone) : -60°C to +180°C
Cable Types Unarmoured
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.

Size Chart / Specification

ORDER CODE GLAND SIZE(PG) THREAD SIZE 'c' THREAD LENGTH 'E' (mm) CABLE DIA. RANGE 'A' (mm) HEXAGON SIZE 'A/F'
  METRIC NPT METRIC (mm) MIN MAX
MM-A1A2-20S16 B2 20S16 M20x1.5 1/2" 10 6 10.5 22
MM-A1A2-20S B2 20S M20x1.5 1/2" 10 9 12 22
MM-A1A2-20L B2 20l M20x1.5 1/2" 10 10.5 14 27
MM-A1A2-25S B2 25S M25x1.5 3/4" 10 11.5 16.5 31
MM-A1A2-25L B2 25L M25x1.5 3/4" 10 15 20.5 35
MM-A1A2-32 B2 32L M32x1.5 1" 10 19.5 26.5 42
MM-A1A2-40 B2 40L M40x1.5 1.1/4" 15 26 32.7 50
MM-A1A2-50S B2 50S M50x1.5 1.1/2" 15 32 39.5 55
MM-A1A2-50L B2 50L M50x1.5 2" 15 38 44.5 62
MM-A1A2-63S B2 63S M63x1.5 2" 15 43 49.5 70
MM-A1A2-63L B2 63L M63x1.5 2.1/2" 15 48 56.5 75
MM-A1A2-75S B2 75S M75x1.5 2.1/2" 15 55 61.7 80
MM-A1A2-75L B2 75L M75x1.5 3" 15 60.5 68 85
MM-A1A2-90 B2 90 M90x2 3" 20 66 78 108
MM-A1A2-100 B2 100 Ml 00x2 3.1/2" 20 76.5 90 120
