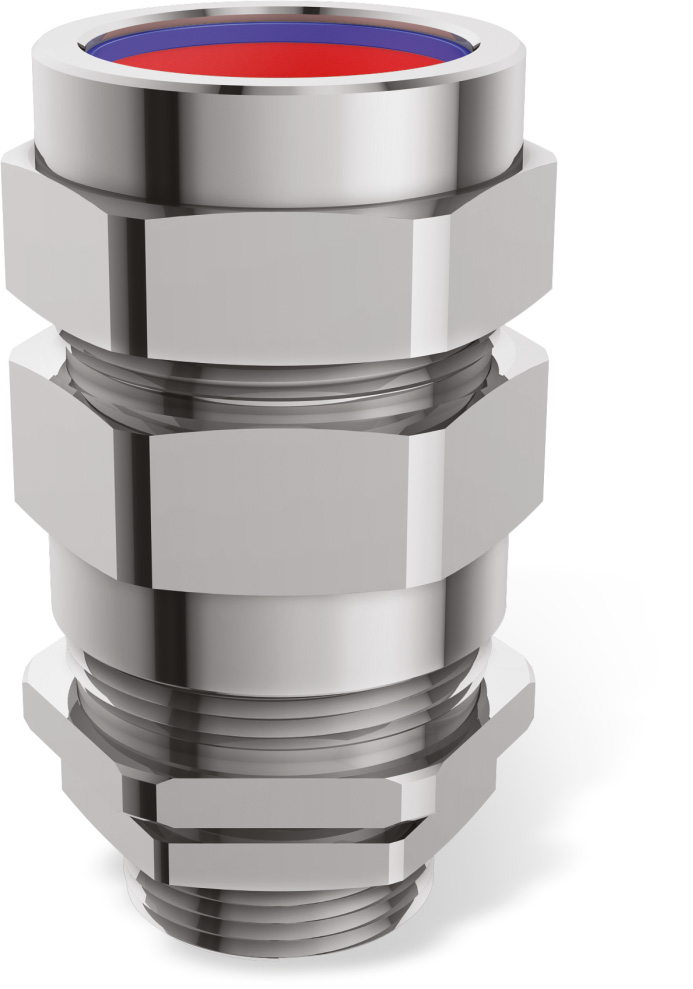

E1W Double Compression Cable Gland

product
Type E1W Double Compression Cable Gland
Cable Type Armoured (Steel wire armour (SWA) Aluminium wire armour (AWA)
Application For use with all types of SWA cable for indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath. Armour lock with separate armour locking ring, ideal for checking electrical continuity
Gland Material Brass (CuZn39PB3), Stainless Steel (304 or 316L), Aluminum (6082)
Option Thread Metric, NPT, BSP, BSPT
IP Rating IP66
Sealling Method Double Compression Sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard Seals (Nitrile): -20°C To 80°C. On Request (Silicone) : – 60°C to +180°C
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC S/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer

Size Chart / Specification

ORDER CODE GLAND SIZE(PG) THREAD SIZE 'c' THREAD LENGTH 'E' (mm) CABLE DIA. RANGE 'A' (mm) CABLE DIA. RANGE 'B' (mm)
  METRIC(ISO) NPT METRIC (mm) MIN MAX MIN MAX
MM-E1W20S B2 20S M20 1/2″ 15 8.8 11.7 11.8 16
MM-E1W20L B2 20L M20 1/2" 15 11.4 14 14 20.8
MM-E1W25S B2 25S M25 3/4" 15 13 16 18 24
MM-E1W25L B2 25L M25 3/4" 15 17.3 20 20.3 27.4
MM-E1W32S B2 32S M32 1" 15 20 23 24.5 31
MM-E1W32L B2 32L M32 1" 15 24.2 26.3 26.5 33.5
MM-EW40S B2 40S M40 11/4″ 15 26 29 30.4 36
MM-E1W40L B2 40L M40 11/4″ 15 29.5 32.1 33.2 40
MM-E1W50S B2 50S M50 11/2″ 15 33 38.1 40 46.5
MM-E1W50L B2 50L M50 11/2″ 15 38 44 44 52.6
MM-E1W63S B2 63S M63 2" 20 44 50.5 50 59
MM-E1W63L B2 63L M63 2" 20 50 56 56 66
MM-E1W75S B2 75S M75 21/2″ 20 56 62 63.5 71
MM-E1W75L B2 75L M75 21/2″ 20 62 68.5 69 78
MM-E1W90L B2 90L M90 3″ 20 65 80 84 96
