A2F Type Cable Gland for all types of unarmoured cables.

product
We are India's leading manufacturer, supplier, and exporter of A2F Type Single Compression Cable Glands.

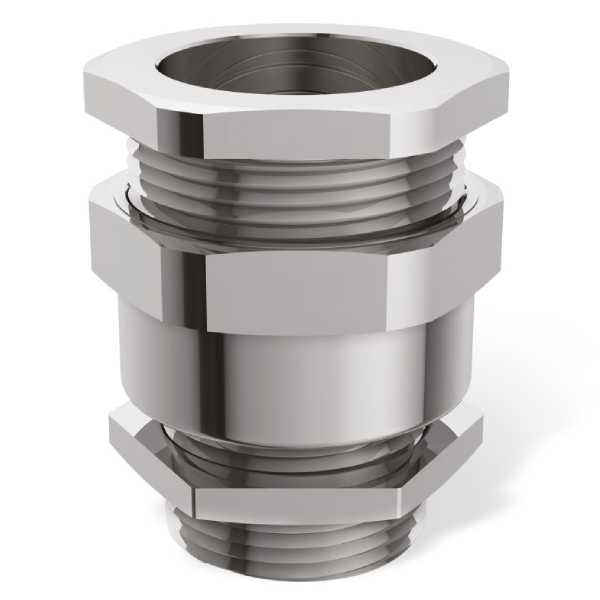

Type A2F Type Single Compression Cable Gland
Cable Type Unarmoured
Application For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, Unarmoured plastic or rubber sheathed cables.
Gland Material Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
Option Thread Metric, NPT, BSP & PG
IP Rating IP66 & IP68
Operating Temperature Standard seals (Nitrile): -20°C to 80°C. on request (silicone) : -60°C to +180°C
Seal Type Displacement type
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer
IECEx Certificate No. IECEx PRE 20.0124X
ATEX Certificate No. Presafe 20 ATEX 48906X
EAC Certificate No. RU C-IN.AA71.B.00212/20
Protection Type Ex d, Ex e, Ex t
AVAILABLE ENTRY THREAD “C” (ALTERNATE METRIC THREAD LENGTHS AVAILABLE)

Size Chart / Specification

ORDER CODE GLAND SIZE METRIC ENTRY THREAD 'C' (mm) THREAD LENGTH 'E' (mm) CABLE DIA. RANGE 'A' (mm) M N
  NPT OPTIONAL NPT METRIC NPT MIN MAX MAX MAX
MM-EX-A2F-20S16 20S16 M20 1/2" 3/4" 17 20 3.2 8.5 24 26.5
MM-EX-A2F-20S 20S M20 1/2" 3/4" 17 20 6.2 11.6 24 26.5
MM-EX-A2F-20 20 M20 1/2" 3/4" 17 20 8 13.9 27 30
MM-EX-A2F-25 25 M25 3/4" 1" 17 21 11.2 19.6 36 40
MM-EX-A2F-32 32 M32 1" 1.1/4" 17 26 17.1 26 42 46
MM-EX-A2F-40 40 M40 11/4" 1.1/2" 17 26 23.6 31.6 50 55
MM-EX-A2F-50S 50S M50 11/2" 2" 17 26 31.1 37.5 55 60
MM-EX-A2F-50L 50 M50 2" 2.1/2" 17 27 35.7 43.1 61 65
MM-EX-A2F-63S 63S M63 2" 2.1/2" 17 27 41.6 48.7 70 77
MM-EX-A2F-63L 63L M63 21/2" 3" 17 40 47.3 55.2 74 81
MM-EX-A2F-75S 75S M75 21/2" 3" 17 40 54.1 61.2 80 87
MM-EX-A2F-75L 75 M75 3" 3.1/2" 17 42 61.2 67.2 91 93
MM-EX-A2F-90 90 M90 31/2" 4" 24 44 66.7 79.2 108 11
