E1W Type Double Compression Heavy Duty Cable Gland.

product
We are India's leading manufacturer, supplier, and exporter of E1W Cable Gland for Steel Wire Armoured (SWA) & Aluminium Wire Armoured (AWA) Cables.

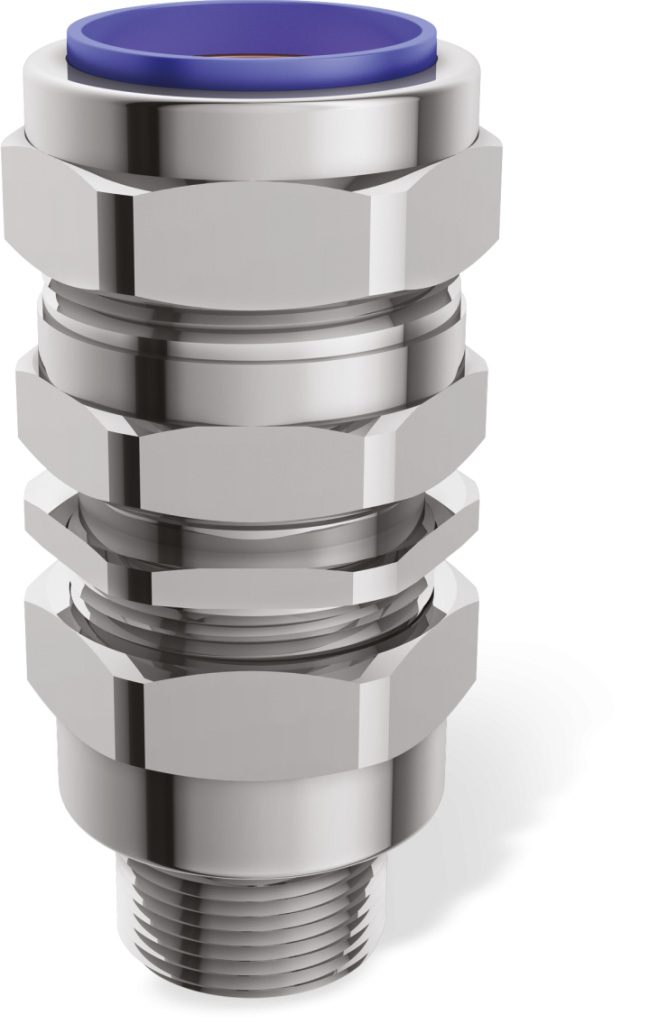

Type E1W Double Compression Heavy Duty Cable Gland
Cable Type Steel Wire Armoured (SWA) Aluminium Wire Armoured (AWA)
Application For use with all types of SWA cable for indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath.
Gland Material Brass (CuZn39Pb3), Stainless Steel (304 or 316L), Aluminium (6082)
Option Thread Metric, NPT BSP, BSPT
IP Rating IP66 & IP67
Sealling Method Double compression sealing (Sealing on both outer and inner sheath)
Operating Temperature Standard seals (Nitrile): -20°C to 80°C. on request (Silicone) : -60°C to +180°C
Finish Natural Brass or Nickel Plated or Electroless Nickel Plated
Accessories PVC/ LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.
AVAILABLE ENTRY THREAD “C” (ALTERNATE METRIC THREAD LENGTHS AVAILABLE)

Size Chart / Specification

ORDER CODE GLAND SIZE(PG) METRIC STANDARD THREAD LENGTH THREAD LENGTH CABLE DIA. RANGE 'A' (mm) CABLE DIA. RANGE 'B' (mm) ARMOUR RANGE STEPPED CONE (W) A/F A/C
  'E' (METRIC) NPT 'E' (NPT) MIN MAX MIN MAX MIN MAX MIN MIN
MM-E1W-20S16H B2 20S16H M16 10 3/8″ 20 3.2 8.6 6.2 13.1 0.8 1.25 24.5 27
MM-E1W-20SH B2 20SH M20 10 1/2″ 20 6.2 11.5 9.6 15.9 0.8 1.25 24.5 27
MM-E1W-20H B2 20H M20 10 1/2″ 20 8 13.9 12.5 20.9 0.8 1.25 31 34
MM-E1W-25SH B2 25SH M25 10 3/4″ 20 11.2 19.9 14 22 1.25 1.6 38 42
MM-E1W-25H B2 25H M25 10 3/4″ 20 11.2 19.9 18.3 26 1.25 1.6 38 42
MM-E1W-32H B2 32H M32 10 1″ 22 17.1 26.3 23.7 33.9 1.6 2 46 51
MM-E1W-40H B2 40H M40 15 11/4″ 22 22.1 32.1 28 40.3 1.6 2 55 60
MM-E1W-50SH B2 50H M50 15 11/4″ 22 29.5 38.1 35.2 46.7 2 2.5 60 66.5
MM-E1W-50H B2 50H M50 15 2″ 22 35.6 44 40.5 53 2 2.5 70 78
MM-E1W-6SH B2 63SH M63 15 2″ 29 40.1 49.9 45.6 59.4 2 2.5 75 83
MM-E1W-63H B2 63H M63 15 21/2″ 29 47.2 56 54.6 65.8 2 2.5 80 89
MM-E1W-75SH B2 75SH M75 15 21/2″ 34 58.8 61.9 59 72 2 2.5 91 98.5
MM-E1W-75H B2 75H M75 15 3″ 34 59.1 68 66.7 78.5 2.5 3 99 109
MM-E1W-90H B2 90H M90 20 31.2″ 44 66.6 80 76.2 90.4 3.15 4 114 124
MM-E1W-100H B2 100H M100 20 4″ 44 76 91 86.1 101.5 3.15 4 123 138
