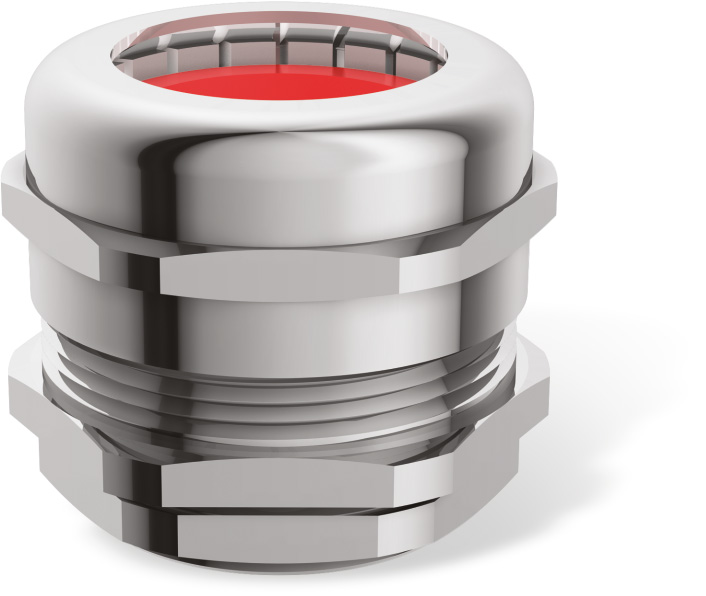

IP 68 Cable Gland - PG Threaded Single Compression

product
We are India's leading manufacturer, supplier, and exporter of PG Threaded Single CompressionIP68 Cable Glands.
Type IP 68 PG Threaded Single Compression Cable Gland
Gland Size PG 7 to PG 48
Gland Material Brass (CuZn39Pb3), Stainless Steel 316L
Thread PG
IP Rating IP68
Operating Temperature Standard Seals -20°C to +90°C.
Cable Types Unarmoured
Finish Nickel Plated
Accessories Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement

IP68 Gland Size Chart / Specification.

ORDER CODE GLAND SIZE THREAD SIZE 'B' THREAD LENGTH 'C' (mm) ACROSS FLAT CABLE DIA. RANGE 'A' (mm)
  METRIC METRIC SHORT LONG FLAT MIN MAX
MM-PG7-6.5 X6 PG7 PG7 6 10 14 3 6.5
MM-PG9-8 X6 PG9 PG9 6 10 17 4 8
MM-PG11-10 X6 PG11 PG11 6 10 20 6 10
MM-PG13-12 X6 PG13 PG13 6.5 10 22 8 12
MM-PG16-14 X6 PG16 PG16 6.5 10 24 10 14
MM-PG21-18 X6 PG21 PG21 7 12 30 13 18
MM-PG29-20 X6 PG29 PG29 8 12 40 13 20
MM-PG29-25 X6 PG29 PG29 8 12 40 18 25
MM-PG36-32 X6 PG36 PG36 8 12 50 22 32
MM-PG42-35 X6 PG42 PG42 9 15 57 27 35
MM-PG42-48 X6 PG42 PG42 9 15 57 32 38
MM-PG48-35 X6 PG48 PG48 10 15 68 29 35
MM-PG48-44 X6 PG48 PG48 10 15 68 37 44
