Reducer Stainless Steel (SS316L) (Metric to Metric Thread)

Category : Reducer

Specifications
IP Rating IP68
Certificates lECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type Metric to Metric
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

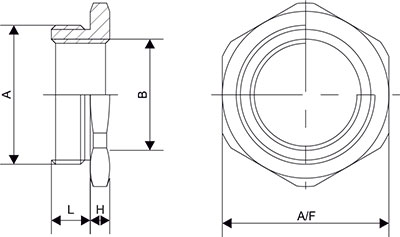

Size Chart

Order Code A B L A/F G Data Sheet (PDF)
CEMM-EX-RD1M00M X6 (M20 to M12) M20X1.5 M12X1.5 22 25 16 View
CEMM-EX-RD1M0M X6 (M20 to M16) M20X1.5 M16X1.5 22 25 16 View
CEMM-EX-RD2M00M X6 (M25 to M12) M25X1.5 M12X1.5 22 30 16 View
CEMM-EX-RD2M0M X6 (M25 to M16) M25X1.5 M16X1.5 22 30 16 View
CEMM-EX-RD2M1M X6 (M25 to M20) M25X1.5 M20X1.5 22 30 16 View
CEMM-EX-RD3M0M X6 (M32 to M16) M32X1.5 M16X1.5 22 36 16 View
CEMM-EX-RD3M1M X6 (M32 to M20) M32X1.5 M20X1.5 22 36 16 View
CEMM-EX-RD3M2M X6 (M32 to M25) M32X1.5 M25X1.5 22 36 16 View
CEMM-EX-RD4M1M X6 (M40 to M20) M40X1.5 M20X1.5 22 45 16 View
CEMM-EX-RD4M2M X6 (M40 to M25) M40X1.5 M25X1.5 22 45 16 View
CEMM-EX-RD4M3M X6 (M40 to M32) M40X1.5 M32X1.5 22 45 16 View
CEMM-EX-RD5M1M X6 (M50 to M20) M50X1.5 M20X1.5 24 55 16 View
CEMM-EX-RD5M2M X6 (M50 to M25) M50X1.5 M25X1.5 24 55 16 View
CEMM-EX-RD5M3M X6 (M50 to M32) M50X1.5 M32X1.5 24 55 16 View
CEMM-EX-RD5M4M X6 (M50 to M40) M50X1.5 M40X1.5 24 55 16 View
CEMM-EX-RD6M1M X6 (M60 to M20) M60X1.5 M20X1.5 24 68 16 View
CEMM-EX-RD6M2M X6 (M60 to M25) M63X1.5 M25X1.5 24 68 16 View
CEMM-EX-RD6M3M X6 (M60 to M32) M63X1.5 M32X1.5 24 68 16 View
CEMM-EX-RD6M4M X6 (M60 to M40) M63X1.5 M40X1.5 24 68 16 View
CEMM-EX-RD6M5M X6 (M60 to M50) M63X1.5 M50X1.5 24 68 16 View
CEMM-EX-RD7M2M X6 (M75 to M25) M75X1.5 M25X1.5 28 80 20 View
CEMM-EX-RD7M3M X6 (M75 to M32) M75X1.5 M32X1.5 28 80 20 View
CEMM-EX-RD7M4M X6 (M75 to M40) M75X1.5 M40X1.5 28 80 20 View
CEMM-EX-RD7M5M X6 (M75 to M50) M75X1.5 M50X1.5 28 80 20 View
CEMM-EX-RD7M6M X6 (M75 to M63) M75X1.5 M63X1.5 28 80 20 View
CEMM-EX-RD8M3M X6 (M90 to M32) M90X1.5 M32X1.5 28 95 20 View
CEMM-EX-RD8M4M X6 (M90 to M40) M90X1.5 M40X1.5 28 95 20 View
CEMM-EX-RD8M5M X6 (M90 to M50) M90X1.5 M50X1.5 28 95 20 View
CEMM-EX-RD8M6M X6 (M90 to M63) M90X1.5 M63X1.5 28 95 20 View
CEMM-EX-RD8M7M X6 (M90 to M75) M90X1.5 M75X1.5 28 95 20 View
CEMM-EX-RD9M4M X6 (M100 to M40) M100X1.5 M40X1.5 30 110 20 View
CEMM-EX-RD9M5M X6 (M100 to M50) M100X1.5 M50X1.5 30 110 20 View
CEMM-EX-RD9M6M X6 (M100 to M63) M100X1.5 M63X1.5 30 110 20 View
CEMM-EX-RD9M7M X6 (M100 to M75) M100X1.5 M75X1.5 30 110 20 View
CEMM-EX-RD9M8M X6 (M100 to M90) M100X1.5 M90X1.5 30 110 20 View
