Adaptor Stainless Steel (SS316L) (Metric to NPT)

Category : Adaptor

Specifications
IP Rating IP68
Certificates IECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type Metric to NPT
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

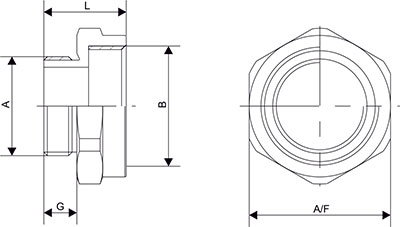

Size Chart

Order Code A B L G A/F Data Sheet (PDF)
CEMM-EX-AD0M0N X6 (M16 to 3/8''NPT) M16X1.5 3/8''NPT 34 16 20 View
CEMM-EX-AD0M1N X6 (M16 to 1/2''NPT) M16X1.5 1/2''NPT 37 16 25 View
CEMM-EX-AD0M2N X6 (M16 to 3/4''NPT) M16X1.5 3/4'NPT 37 16 30 View
CEMM-EX-AD1M1N X6 (M20 to 1/2''NPT) M20X1.5 1/2''NPT 37 16 25 View
CEMM-EX-AD1M2N X6 (M20 to 3/4''NPT) M20X1.5 3/4'NPT 37 16 30 View
CEMM-EX-AD1M3N X6 (M20 to 1''NPT) M20X1.5 1''NPT 41 16 36 View
CEMM-EX-AD2M2N X6 (M25 to 3/4''NPT) M25X1.5 3/4''NPT 37 16 30 View
CEMM-EX-AD2M3N X6 (M25 to 1''NPT) M25X1.5 1''NPT 41 16 36 View
CEMM-EX-AD2M4N X6 (M25 to 1 1/4''NPT) M25X1.5 1.1/4''NPT 41 16 45 View
CEMM-EX-AD3M3N X6 (M32 to 1''NPT) M32X1.5 1''NPT 41 16 36 View
CEMM-EX-AD3M4N X6 (M32 to 1 1/4''NPT) M32X1.5 1.1/4''NPT 41 16 45 View
CEMM-EX-AD3M5N X6 (M32 to 1 1/2''NPT) M32X1.5 1.1/2''NPT 43 16 55 View
CEMM-EX-AD4M4N X6 (M40 to 1 1/4''NPT) M40X1.5 1.1/4''NPT 41 16 45 View
CEMM-EX-AD4M5N X6 (M40 to 1 1/2''NPT) M40X1.5 1.1/2''NPT 43 16 55 View
CEMM-EX-AD4M6N X6 (M40 to 2''NPT) M40X1.5 2''NPT 43 16 65 View
CEMM-EX-AD5M5N X6 (M50 to 1 1/2''NPT) M50X1.5 1.1/2''NPT 43 16 55 View
CEMM-EX-AD5M6N X6 (M50 to 2''NPT) M50X1.5 2''NPT 43 16 65 View
CEMM-EX-AD5M7N X6 (M50 to 2 1/2''NPT) M50X1.5 2.1/2''NPT 47 16 80 View
CEMM-EX-AD6M6N X6 (M63 to 2''NPT) M63X1.5 2''NPT 43 16 68 View
CEMM-EX-AD6M7N X6 (M63 to 2 1/2''NPT) M63X1.5 2.1/2''NPT 47 16 80 View
CEMM-EX-AD6M8N X6 (M63 to 3''NPT) M63X1.5 3''NPT 47 16 95 View
CEMM-EX-AD7M7N X6 (M75 to 2 1/2''NPT) M75X1.5 2.1/2''NPT 52 20 80 View
CEMM-EX-AD7M8N X6 (M75 to 3''NPT) M75X1.5 3''NPT 52 20 95 View
CEMM-EX-AD7M9N X6 (M75 to 4''NPT) M75X1.5 4''NPT 54 20 120 View
CEMM-EX-AD8M8N X6 (M75 to 3''NPT) M75X1.5 3''NPT 52 20 95 View
CEMM-EX-AD8M9N X6 (M90 to 4''NPT) M90X1.5 4''NPT 54 20 120 View
