Type	IP 68 Metric Threaded Single Compression Cable Gland
Gland Size	M12 to M75
Gland Material	Stainless Steel (SS316L)
Thread	Metric
IP Rating	IP68
Operating Temperature	Standard Seals -20°C to +90°C.
Cable Types	Unarmoured
Finish	Nickle Plated
Accessories	Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement

Order Code	Cable Gland Size	Metric	Thread Length (mm)	Cable Dia. (mm)	Across Flat	Data Sheet (PDF)
CEMM-M12-6.5 X6 (M12)	M12	M12	6 mm - 10 mm	3 mm - 6.5 mm	14	View
CEMM-M12-8 X6 (M12)	M12	M12	6 mm - 10 mm	4 mm - 8 mm	17	View
CEMM-M16-8 X6 (M16)	M16	M16	6 mm - 10 mm	4 mm - 8 mm	17	View
CEMM-M16-10 X6 (M16)	M16	M16	6 mm - 10 mm	6 mm - 10 mm	20	View
CEMM-M20-12 X6 (M20)	M20	M20	6.5 mm - 10 mm	8 mm - 12 mm	22	View
CEMM-M20-14 X6 (M20)	M20	M20	6.5 mm - 10 mm	10 mm - 14 mm	24	View
CEMM-M25-14 X6 (M25)	M25	M25	7 mm - 12 mm	9 mm - 14 mm	27	View
CEMM-M25-16 X6 (M25)	M25	M25	7 mm - 12 mm	11 mm - 16 mm	27	View
CEMM-M25-18 X6 (M25)	M25	M25	7 mm - 12 mm	13 mm - 18 mm	30	View
CEMM-M32-20 X6 (M32)	M32	M32	8 mm - 12 mm	13 mm - 20 mm	40	View
CEMM-M32-25 X6 (M32)	M32	M32	8 mm - 12 mm	18 mm - 25 mm	40	View
CEMM-M40-23 X6 (M40)	M40	M40	8 mm - 15 mm	15 mm - 23 mm	44	View
CEMM-M40-28 X6 (M40)	M40	M40	8 mm - 15 mm	19 mm - 28 mm	44	View
CEMM-M40-32 X6 (M40)	M40	M40	8 mm - 15 mm	22 mm - 32 mm	50	View
CEMM-M50-29 X6 (M50)	M50	M50	9 mm - 15 mm	22 mm - 29 mm	55	View
CEMM-M50-35 X6 (M50)	M50	M50	9 mm - 15 mm	27 mm - 35 mm	55	View
CEMM-M50-38 X6 (M50)	M50	M50	9 mm - 15 mm	32 mm - 38 mm	57	View
CEMM-M63-35 X6 (M63)	M63	M63	10 mm - 15 mm	29 mm - 35 mm	68	View
CEMM-M63-44 X6 (M63)	M63	M63	10 mm - 15 mm	37 mm - 44 mm	68	View
CEMM-M75-53 X6 (M75)	M75	M75	15 mm - 20 mm	43 mm - 53 mm	85	View
CEMM-M75-60 X6 (M75)	M75	M75	15 mm - 20 mm	53 mm - 60 mm	85	View

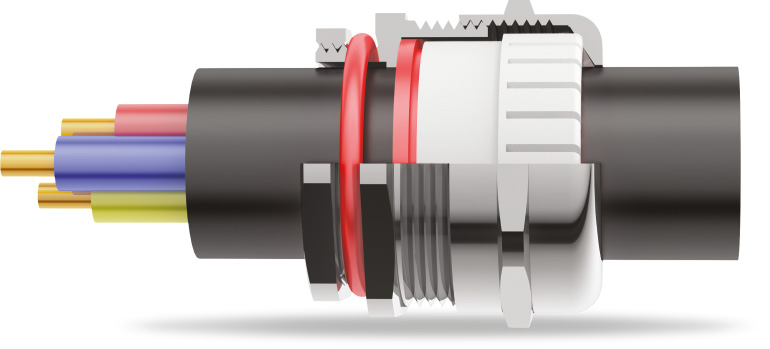

Single Compression Cable Gland Stainless Steel (SS316L) (Metric Thread)
