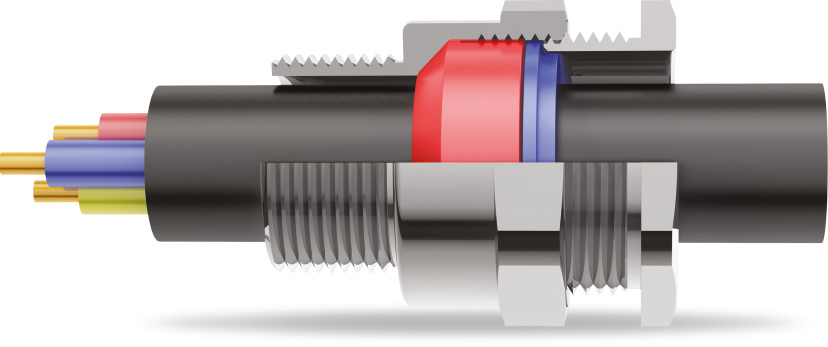

Single Compression Cable Gland (NPT Thread)

Category : Single Compression Cable Gland

Specifications
Type A2F Single Compression Cable Gland
Cable Types Unarmoured
Application For indoor and outdoor use with all types of unarmoured cable where it is essential to provide IP66 or IP68 protection on the outer sheath of cable for circular, Unarmoured plastic or rubber sheathed cables.
Option Thread NPT
Gland Material Brass Nickle Plated (BNP)
IP Rating IP66 & IP68
Seal Type Displacement Type
Operating Temperature Standard seals (Nitrile): -20°C to 80°C. on request (Silicone) : -60°C to +180°C
Finish Natural Brass or Nickle Plated or Electroless Nickle Plated

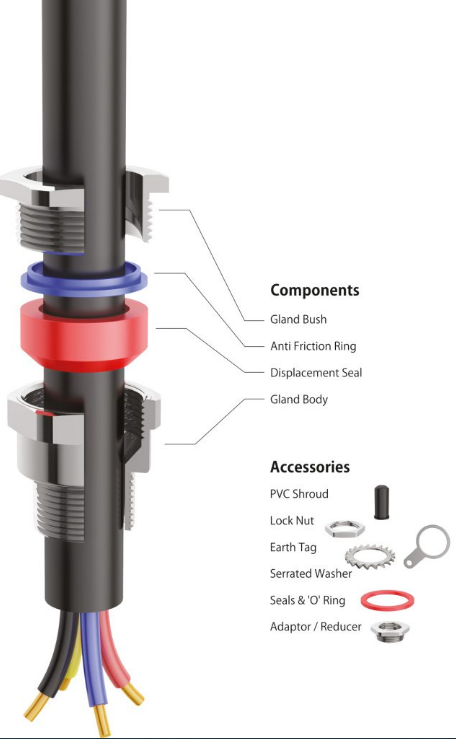

Accessories PVC/LSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer
IECEx Certificate No. IECEx PRE 20.0124X
ATEX Certificate No. Presafe 20 ATEX 48906X
EAC Certificate No. RU C-IN.AA71.B.00212/20
Protection Type Ex d, Ex e, Ex t

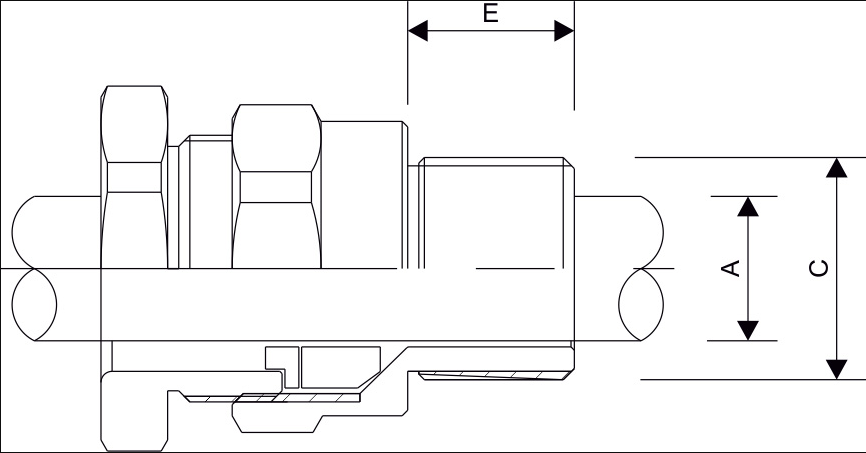

Size Chart

Order Code Cable Gland Size Entry Thread NPT Connection Thread Length Cable Dia. (mm) Across Flat Across Corner Data Sheet (PDF)
CEMM-EX-A2F-20S16 1N B2 (1/2" NPT) 20S16 1/2'' 20 3.2 mm - 8.5 mm 24 26.5 View
CEMM-EX-A2F-20S 1N B2 (1/2" NPT) 20S 1/2'' 20 6.2 mm - 11.6 mm 24 26.5 View
CEMM-EX-A2F-20 1N B2 (1/2" NPT) 20 1/2'' 20 8 mm - 13.9 mm 27 30 View
CEMM-EX-A2F-25 2N B2 (3/4" NPT) 25 3/4'' 21 11.2 mm - 19.6 mm 36 40 View
CEMM-EX-A2F-32 3N B2 (1" NPT ) 32 1'' 26 17.1 mm - 26 mm 42 46 View
CEMM-EX-A2F-40 4N B2 (1.1/4" NPT) 40 1 1/4'' 26 23.6 mm - 31.6 mm 50 55 View
CEMM-EX-A2F-50S 5N B2 ( 1.1/2" NPT) 50S 1 1/2'' 26 31.1 mm - 37.5 mm 55 60 View
CEMM-EX-A2F-50 6N B2 ( 2" NPT) 50 2'' 27 35.7 mm - 43.1 mm 61 65 View
CEMM-EX-A2F-63S 6N B2 ( 2" NPT) 63S 2'' 27 41.6 mm - 48.7 mm 70 77 View
CEMM-EX-A2F-63 7N B2 ( 2.1/2" NPT) 63 2 1/2'' 40 47.3 mm - 55.2 mm 74 81 View
CEMM-EX-A2F-75S 7N B2 ( 2.1/2" NPT) 75S 2 1/2'' 40 54.1 mm - 61.2 mm 80 87 View
CEMM-EX-A2F-75 8N B2 (3" NPT) 75 3'' 42 61.2 mm - 67.2 mm 91 93 View
CEMM-EX-A2F-90 9N B2 (3.1/2" NPT) 90 3 1/2'' 44 66.7 mm - 79.2 mm 108 116 View
