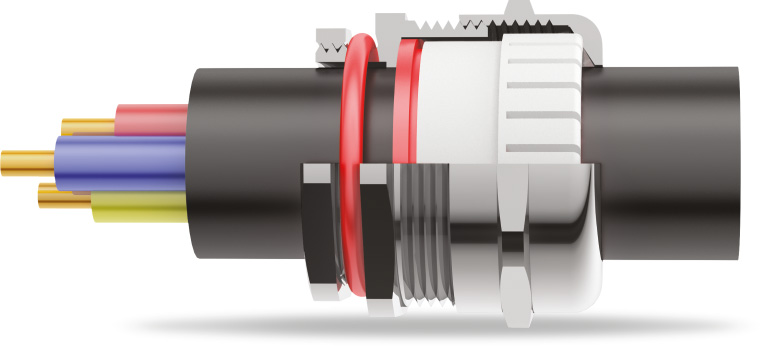

Single Compression Cable Gland Brass Nickle Plated (BNP) (Metric Thread)

Category : IP68 Single Compression Cable Gland

Specifications
Type IP 68 Metric Threaded Single Compression Cable Gland
Gland Size M12 to M75
Gland Material Brass Nickle Plated (BNP)
Thread Metric
IP Rating IP68
Operating Temperature Standard Seals -20°C to +90°C.
Cable Types Unarmoured
Finish Nickle Plated

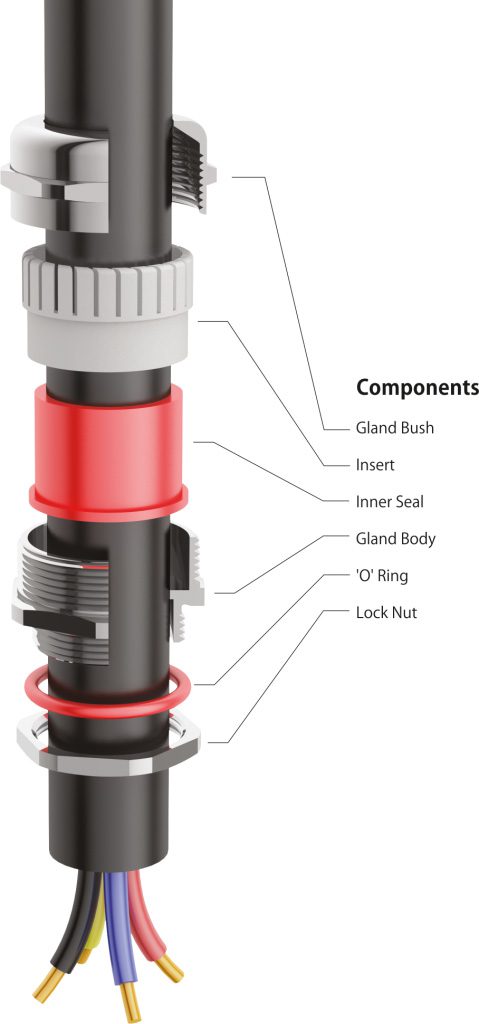

Accessories Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement

Size Chart

Certificates (Click to View): Certificate IP68 Certificate CE

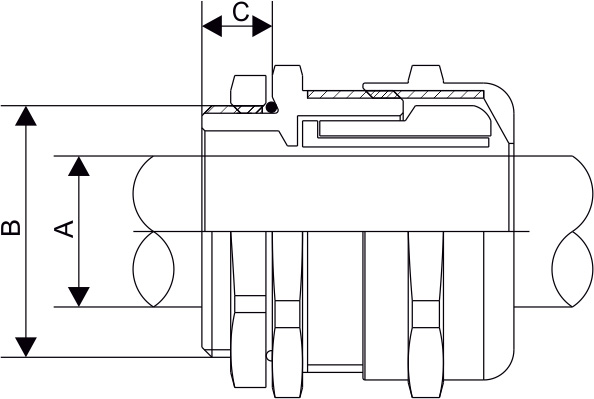

Order Code Cable Gland Size Metric Cable Dia. (mm) Across Flat Thread Length (mm) Data Sheet (PDF)
CEMM-M12-6.5 B2 (M12) M12 M12 3 mm - 6.5 mm 14 6 mm - 10 mm View
CEMM-M12-8 B2 (M12) M12 M12 4 mm - 8 mm 17 6 mm - 10 mm View
CEMM-M16-8 B2 (M16) M16 M16 4 mm - 8 mm 17 6 mm - 10 mm View
CEMM-M16-10 B2 (M16) M16 M16 6 mm - 10 mm 20 6 mm - 10 mm View
CEMM-M20-12 B2 (M20) M20 M20 8 mm - 12 mm 22 6.5 mm - 10 mm View
CEMM-M20-14 B2 (M20) M20 M20 10 mm - 14 mm 24 6.5 mm - 10 mm View
CEMM-M25-14 B2 (M25) M25 M25 9 mm - 14 mm 27 7 mm - 12 mm View
CEMM-M25-16 B2 (M25) M25 M25 11 mm - 16 mm 27 7 mm - 12 mm View
CEMM-M25-18 B2 (M25) M25 M25 13 mm - 18 mm 30 7 mm - 12 mm View
CEMM-M32-20 B2 (M32) M32 M32 13 mm - 20 mm 40 8 mm - 12 mm View
CEMM-M32-25 B2 (M32) M32 M32 18 mm - 25 mm 40 8 mm - 12 mm View
CEMM-M40-23 B2 (M40) M40 M40 15 mm - 23 mm 44 8 mm - 15 mm View
CEMM-M40-28 B2 (M40) M40 M40 19 mm - 28 mm 44 8 mm - 15 mm View
CEMM-M40-32 B2 (M40) M40 M40 22 mm - 32 mm 50 8 mm - 15 mm View
CEMM-M50-29 B2 (M50) M50 M50 22 mm - 29 mm 55 9 mm - 15 mm View
CEMM-M50-35 B2 (M50) M50 M50 27 mm - 35 mm 55 9 mm - 15 mm View
CEMM-M50-38 B2 (M50) M50 M50 32 mm - 38 mm 57 9 mm - 15 mm View
CEMM-M63-35 B2 (M63) M63 M63 29 mm - 35 mm 68 10 mm - 15 mm View
CEMM-M63-44 B2 (M63) M63 M63 37 mm - 44 mm 68 10 mm - 15 mm View
CEMM-M75-53 B2 (M75) M75 M75 43 mm - 53 mm 85 15 mm - 20 mm View
CEMM-M75-60 B2 (M75) M75 M75 53 mm - 60 mm 85 15 mm - 20 mm View
