Reducer Stainless Steel (SS316L) (NPT to Metric Thread)

Category : Reducer

Specifications
IP Rating IP68
Certificates lECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type NPT to Metric
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

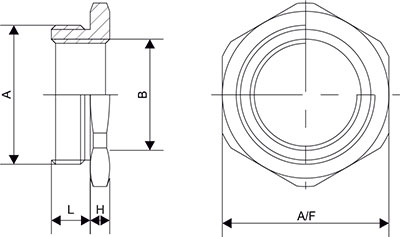

Size Chart

Order Code A B L A/F G Data Sheet (PDF)
CEMM-EX-RD0N00M X6 (3/8''NPT to M12) 3/8''NPT M12X1.5 22 20 16 View
CEMM-EX-RD1N00M X6 (1/2''NPT to M12) 1/2''NPT M12X1.5 27 25 21 View
CEMM-EX-RD1N0M X6 (1/2''NPT to M16) 1/2''NPT M16X1.5 27 25 21 View
CEMM-EX-RD2N00M X6 (3/4''NPT to M12) 3/4''NPT M12X1.5 27 30 21 View
CEMM-EX-RD2N0M X6 (3/4''NPT to M16) 3/4''NPT M16X1.5 27 30 21 View
CEMM-EX-RD2N1M X6 (3/4''NPT to M20) 3/4''NPT M20X1.5 27 30 21 View
CEMM-EX-RD3N00M X6 (1''NPT to M12) 1''NPT M12X1.5 32 36 26 View
CEMM-EX-RD3N0M X6 (1''NPT to M16) 1''NPT M16X1.5 32 36 26 View
CEMM-EX-RD3N1M X6 (1''NPT to M20) 1''NPT M20X1.5 32 36 26 View
CEMM-EX-RD3N2M x6 (1''NPT to M25) 1''NPT M25X1.5 32 36 26 View
CEMM-EX-RD4N00M X6 (1 1/4''NPT to M12) 1.1/4''NPT M12X1.5 32 45 26 View
CEMM-EX-RD4N0M X6 (1 1/4''NPT to M16) 1.1/4''NPT M16X1.5 32 45 26 View
CEMM-EX-RD4N1M X6 (1 1/4''NPT to M20) 1.1/4''NPT M20X1.5 32 45 26 View
CEMM-EX-RD4N2M X6 (1 1/4''NPT to M25) 1.1/4''NPT M25X1.5 32 45 26 View
CEMM-EX-RD4N3M X6 (1 1/4''NPT to M32) 1.1/4''NPT M32X1.5 32 45 26 View
CEMM-EX-RD5N1M X6 (1 1/2''NPT to M20) 1.1/2''NPT M20X1.5 35 55 27 View
CEMM-EX-RD5N2M X6 (1 1/2''NPT to M25) 1.1/2''NPT M25X1.5 35 55 27 View
CEMM-EX-RD5N3M X6 (1 1/2''NPT to M32) 1.1/2''NPT M32X1.5 35 55 27 View
CEMM-EX-RD5N4M X6 (1 1/2''NPT to M40) 1.1/2''NPT M40X1.5 35 55 27 View
CEMM-EX-RD6N2M X6 (2''NPT to M25) 2''NPT M25X1.5 36 68 28 View
CEMM-EX-RD6N3M X6 (2''NPT to M32) 2''NPT M32X1.5 36 68 28 View
CEMM-EX-RD6N4M X6 (2''NPT to M40) 2''NPT M40X1.5 36 68 28 View
CEMM-EX-RD6N5M X6 (2''NPT to M50) 2''NPT M50X1.5 36 68 28 View
CEMM-EX-RD7N3M X6 (2 1/2''NPT to M32) 2.1/2''NPT M32X1.5 51 80 41 View
CEMM-EX-RD7N4M X6 (2 1/2''NPT to M40) 2.1/2''NPT M40X1.5 51 80 41 View
CEMM-EX-RD7N5M X6 (2 1/2''NPT to M50) 2.1/2''NPT M50X1.5 51 80 41 View
CEMM-EX-RD7N6M X6 (2 1/2''NPT to M63) 2.1/2''NPT M63X1.5 51 80 41 View
CEMM-EX-RD8N3M X6 (3''NPT to M32) 3''NPT M32X1.5 54 95 42 View
CEMM-EX-RD8N4M X6 (3''NPT to M40) 3''NPT M40X1.5 54 95 42 View
CEMM-EX-RD8N5M X6 (3''NPT to M50) 3''NPT M50X1.5 54 95 42 View
CEMM-EX-RD8N6M X6 (3''NPT to M63) 3''NPT M63X1.5 54 95 42 View
CEMM-EX-RD8N7M X6 (3''NPT to M75) 3''NPT M75X1.5 54 95 42 View
CEMM-EX-RD9N4M X6 (4''NPT to M40) 4''NPT M40X1.5 57 120 45 View
CEMM-EX-RD9N5M X6 (4''NPT to M50) 4''NPT M50X1.5 57 120 45 View
CEMM-EX-RD9N6M X6 (4''NPT to M63) 4''NPT M63X1.5 57 120 45 View
CEMM-EX-RD9N7M X6 (4''NPT to M75) 4''NPT M75X1.5 57 120 45 View
CEMM-EX-RD9N8M X6 (4''NPT to M90) 4''NPT M90X1.5 57 120 45 View
