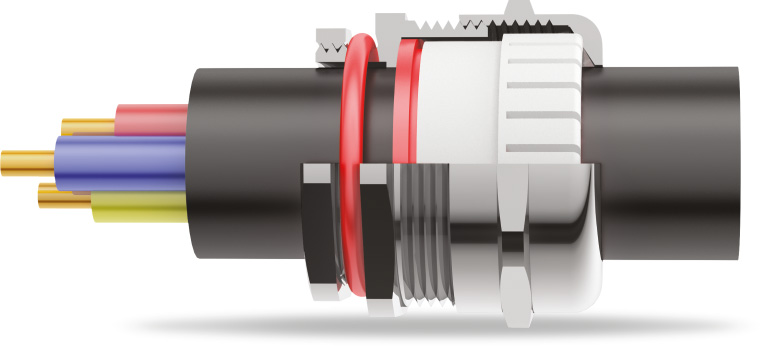

- PG Threaded Single Compression Cable Gland Stainless Steel (SS316L)
Category : IP68 single Compression Cable Gland
| Type | IP 68 Metric Threaded Single Compression Cable Gland |
| Gland Size | PG 7 to PG 48 |
| Gland Material | Stainless Steel (SS316L) |
| Thread | PG |
| IP Rating | IP68 |
| Operating Temperature | Standard Seals -20°C to +90°C. |
| Cable Types | Unarmoured |
| Finish | Nickle Plated |
| Accessories | Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement |

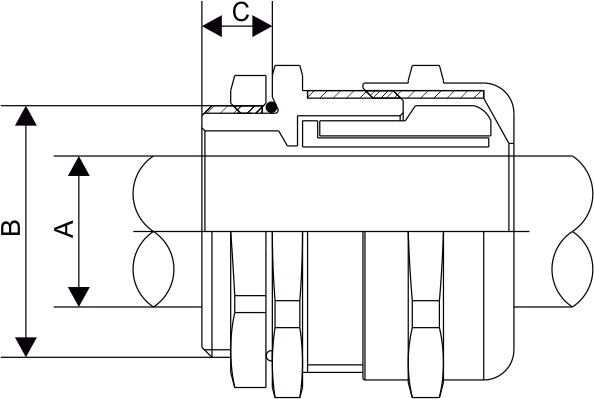

| Order Code | Cable Gland Size | PG | Thread Length (mm) | Cable Dia. (mm) | Across Flat | Data Sheet (PDF) |
|---|---|---|---|---|---|---|
| CEMM-PG7-6.5 X6 (PG7) | PG7 | PG7 | 6 mm - 10 mm | 3 mm - 6.5 mm | 14 | View |
| CEMM-PG9-8 X6 (PG9) | PG9 | PG9 | 6 mm - 10 mm | 4 mm - 8 mm | 17 | View |
| CEMM-PG11-10 X6 (PG11) | PG11 | PG11 | 6 mm - 10 mm | 6 mm - 10 mm | 20 | View |
| CEMM-PG13-12 X6 (PG13) | PG13 | PG13 | 6.5 mm - 10 mm | 8 mm - 12 mm | 22 | View |
| CEMM-PG16-14 X6 (PG16) | PG16 | PG16 | 6.5 mm - 10 mm | 10 mm - 14 mm | 24 | View |
| CEMM-PG21-18 X6 (PG21) | PG21 | PG21 | 7 mm - 12 mm | 13 mm - 18 mm | 30 | View |
| CEMM-PG29-20 X6 (PG29) | PG29 | PG29 | 8 mm - 12 mm | 13 mm - 20 mm | 40 | View |
| CEMM-PG29-25 X6 (PG29) | PG29 | PG29 | 8 mm - 12 mm | 18 mm - 25 mm | 40 | View |
| CEMM-PG36-32 X6 (PG36) | PG36 | PG36 | 8 mm - 12 mm | 22 mm - 32 mm | 50 | View |
| CEMM-PG42-35 X6 (PG42) | PG42 | PG42 | 9 mm - 15 mm | 27 mm - 35 mm | 57 | View |
| CEMM-PG42-38 X6 (PG42) | PG42 | PG42 | 9 mm - 15 mm | 32 mm - 38 mm | 57 | View |
| CEMM-PG48-35 X6 (PG48) | PG48 | PG48 | 10 mm - 15 mm | 29 mm - 35 mm | 68 | View |
| CEMM-PG48-44 X6 (PG48) | PG48 | PG48 | 10 mm - 15 mm | 37 mm - 44 mm | 68 | View |
