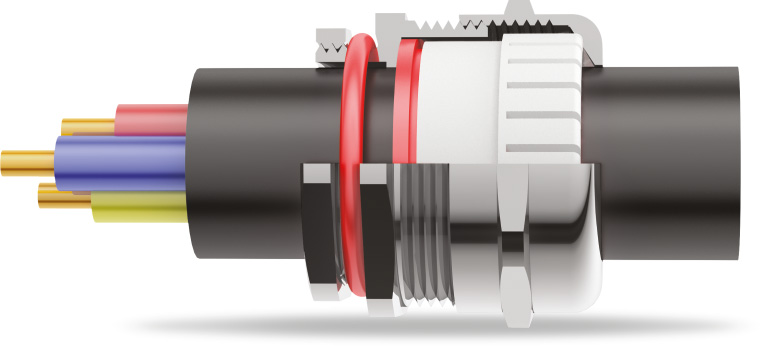

PG Threaded Single Compression Cable Gland Brass Nickle Plated (BNP)

Category : IP68 Single Compression Cable Gland

Specifications
Type IP 68 Metric Threaded Single Compression Cable Gland
Gland Size M12 to M75 , PG 7 to PG 48
Gland Material Brass Nickle Plated (BNP)
Thread PG
IP Rating IP68
Operating Temperature Standard Seals -20°C to +90°C.
Cable Types Unarmoured
Finish Nickle Plated
Accessories Matching Accessories available like PVS Shrouds, Lock Nuts & “O” Ring as per requirement

Size Chart

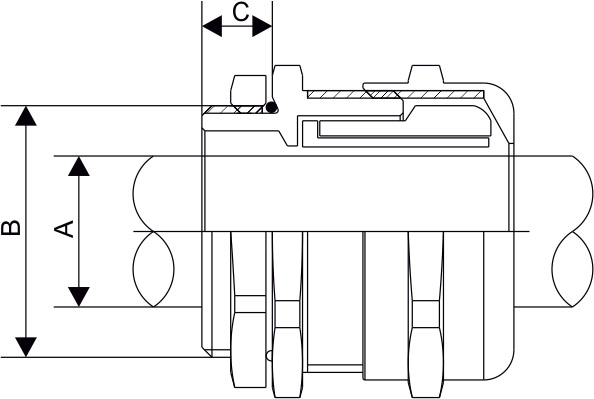

Order Code Cable Gland Size PG Connection Thread Length Cable Dia. (mm) Across Flat Across Corner
CEMM-PG7-6.5 B2 (PG7) PG7 PG7 6 3 mm - 6.5 mm 10 14
CEMM-PG9-8 B2 (PG9) PG9 PG9 6 4 mm - 8 mm 10 17
CEMM-PG11-10 B2 (PG11) PG11 PG11 6 6 mm - 10 mm 10 20
CEMM-PG13-12 B2 (PG13) PG13 PG13 6.5 8 mm - 12 mm 10 22
CEMM-PG16-14 B2 (PG16) PG16 PG16 6.5 10 mm - 14 mm 10 24
CEMM-PG21-18 B2 (PG21) PG21 PG21 7 13 mm - 18 mm 12 30
CEMM-PG29-20 B2 (PG29) PG29 PG29 8 13 mm - 20 mm 12 40
CEMM-PG29-25 B2 (PG29) PG29 PG29 8 18 mm - 25 mm 12 40
CEMM-PG36-32 B2 (PG36) PG36 PG36 8 22 mm - 32 mm 12 50
CEMM-PG42-35 B2 (PG42) PG42 PG42 9 27 mm - 35 mm 15 57
CEMM-PG42-38 B2 (PG42) PG42 PG42 9 32 mm - 38 mm 15 57
CEMM-PG48-35 B2 (PG48) PG48 PG48 10 29 mm - 35 mm 15 68
CEMM-PG48-44 B2 (PG48) PG48 PG48 10 37 mm - 44 mm 15 68
