Hexagon Head Stopping Plug Stainless Steel Metric Thread (SS316L)

Category : Plug / Stop end

Specifications
Product Name Hexagon Head Stopping Plug
Certification IECEx, ATEX & EAC
Suitable Gas Zones Zone 1 & Zone 2 (Gb, Gc)
Suitable Dust Zones Zone 21 & Zone 22 (Db, Dc)
Protection Type Ex eb IIC Gb, Ex tb IIIC Db
IP Rating IP66/IP68
IECEx Certificate No. IECEx KLCS 25.0040X
ATEX Certificate No. KLEX 25 ATEX 0017 X
Thread Type Metric
Material Stainless Steel (SS304), Stainless Steel (SS316L)
Finish Natural Brass or Nickel Plated
Ambient Temperature -60°C to +160°C
Equipment Protection Level (EPL) Zone 1, Zone 2 (Gb, Gc), Zone 21, Zone 22 (Db, Dc)

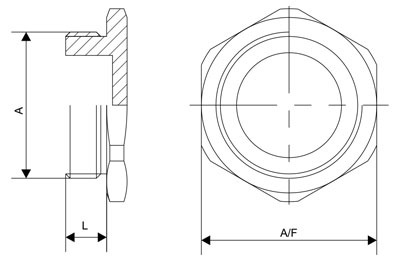

Size Chart

Certificates (Click to View): Certificate Presafe 20 ATEX 24571X Certificate IECEx PRE 20.0123X Certificate PESO
Code Thread (A) Length L (mm) Across Flats A/F Data Sheet (PDF)
CEMM-EX-HPL0M X6 M16 16 22 View
CEMM-EX-HPL1M X6 M20 16 25 View
CEMM-EX-HPL2M X6 M25 16 30 View
CEMM-EX-HPL3M X6 M32 16 36 View
CEMM-EX-HPL4M X6 M40 16 45 View
CEMM-EX-HPL5M X6 M50 16 55 View
CEMM-EX-HPL6M X6 M63 16 68 View
CEMM-EX-HPL7M X6 M75 20 80 View
CEMM-EX-HPL8M X6 M90 20 100 View
