Grommets

Category : Accessories

Specifications
Type FLIP Cable Grommets, FD, metric
Gland Material EPDM
Thread Metric
IP Rating IP66 / IP67
Operating Temperature (-40 °C - 110 °C)
Finish RAL 9005(Black), RAL 7001(Silver Grey)

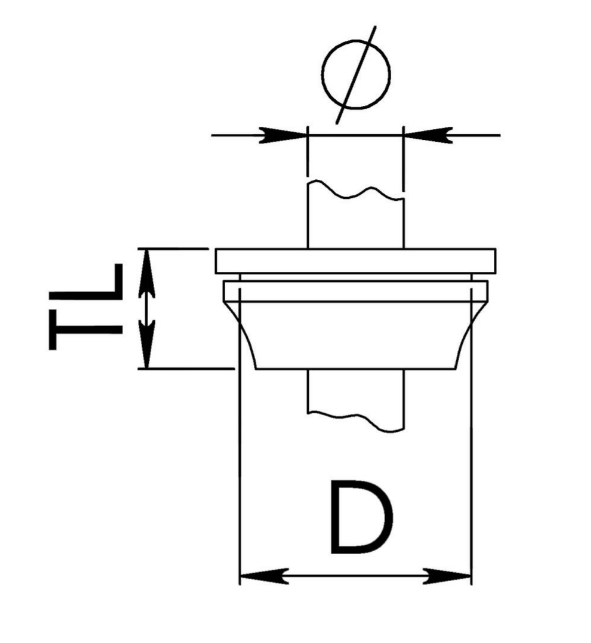

Size Chart

Order Code Color Connection Thread Size Cable Dia. (mm) Total Length (mm) Drilling Dia. (mm) Wall Thickness (mm) Standard Packing (Pcs) Data Sheet (PDF)
CEFD 12 BK - 50062891 RAL 9005 M 12 4 mm - 7 mm 13 mm 12 mm - 13 mm 0,5 mm - 2 mm 50 View
CEFD 16 BK - 50062892 RAL 9005 M 16 5 mm - 9 mm 18 mm 15 mm - 17 mm 1 mm - 4 mm 50 View
CEFD 20 BK - 50062893 RAL 9005 M 20 8 mm - 13 mm 20 mm 20 mm - 21 mm 1 mm - 4 mm 50 View
CEFD 25 BK - 50062894 RAL 9005 M 25 11 mm - 17 mm 21,5 mm 25 mm - 26 mm 1 mm - 4 mm 50 View
CEFD 32 BK - 50062895 RAL 9005 M 32 15 mm - 20 mm 25 mm 32 mm - 33 mm 1 mm - 4 mm 25 View
CEFD 40 BK - 50062896 RAL 9005 M 40 19 mm - 28 mm 30 mm 40 mm - 41 mm 1 mm - 4 mm 25 View
CEFD 50 BK - 50062897 RAL 9005 M 50 27 mm - 35 mm 35 mm 50 mm - 51 mm 1 mm - 4 mm 10 View
CEFD 63 BK - 50110053 RAL 9005 M 63 34 mm - 45 mm 40 mm 50 mm - 51 mm 1 mm - 4 mm 5 View
CEFD 12 SG - 50062770 RAL 7001 M 12 4 mm - 7 mm 13 mm 12 mm - 13 mm 0,5 mm - 2 mm 50 View
CEFD 16 SG - 50062771 RAL 7001 M 16 5 mm - 9 mm 18 mm 15 mm - 17 mm 1 mm - 4 mm 50 View
CEFD 20 SG - 50062772 RAL 7001 M 20 8 mm - 13 mm 20 mm 20 mm - 21 mm 1 mm - 4 mm 50 View
CEFD 25 SG - 50062773 RAL 7001 M 25 11 mm - 17 mm 21,5 mm 25 mm - 26 mm 1 mm - 4 mm 50 View
CEFD 32 SG - 50062774 RAL 7001 M 32 15 mm - 20 mm 25 mm 32 mm - 33 mm 1 mm - 4 mm 25 View
CEFD 40 SG - 50062775 RAL 7001 M 40 19 mm - 28 mm 30 mm 40 mm - 41 mm 1 mm - 4 mm 25 View
CEFD 50 SG - 50062776 RAL 7001 M 50 27 mm - 35 mm 35 mm 50 mm - 51 mm 1 mm - 4 mm 10 View
