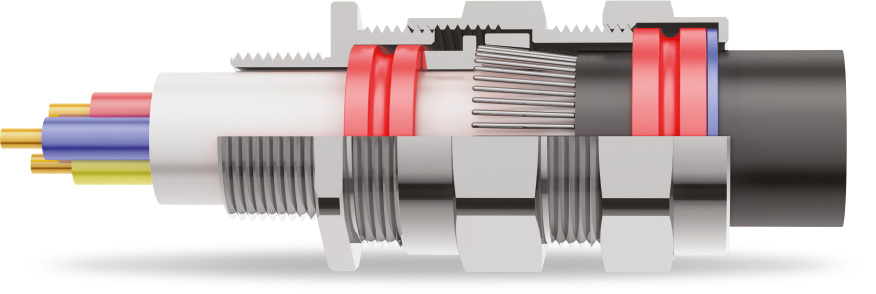

E1W Double Compression Cable Gland Brass Nickle Plated (BNP) (NPT Thread)

Category : E1W Cable Gland Double Compression Cable Gland

Specifications
Type E1W Double Compression Cable Gland
Cable Types Armoured (Steel wire armour (SWA) Aluminium wire armour (AWA)
Application For use with all types of SWA cable for Indoor and outdoor application. Used in applications where it is essential to provide an IP66 seal on the outer sheath. Armour lock with separate armour locking ring, ideal for checking electrical continuity
Standard BS6121: Part 1: 2005. EN50262
Option Thread NPT
Gland Material Brass Nickle Plated (BNP)
IP Rating IP 66
Sealing Method Double Compression Sealing (Sealing on both Outer and Inner Sheath)
Operating Temperature Standard Seals (Nitrile): -20°C TO 80°C. On Request (Silicone): -50°C To +160°C
Finish Natural Brass or Nickle Plated or Electroless Nickle Plated

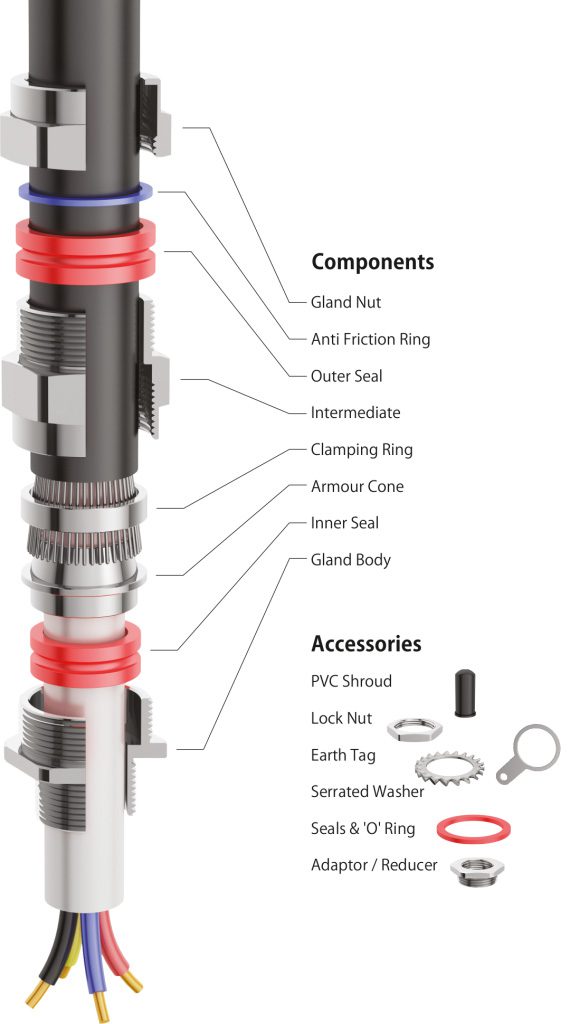

Accessories PVC Shroud, SLSF Shroud, Lock Nut, Earth Tag, Serrated Washer, Adaptor / Reducer.

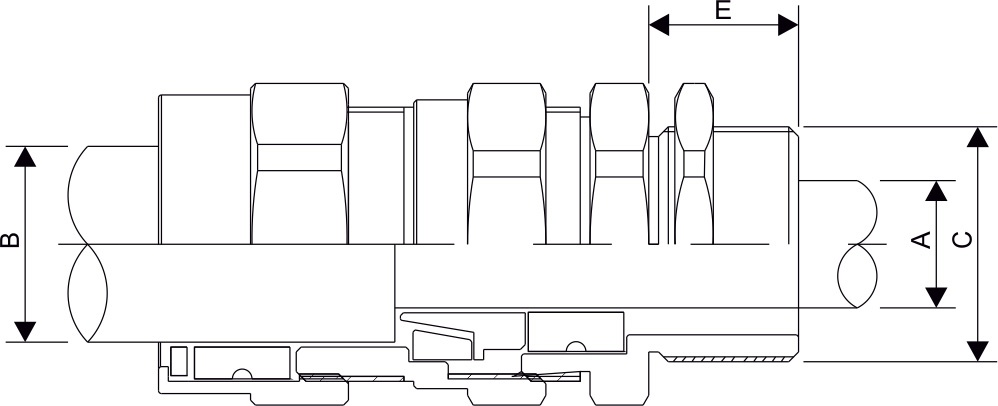

Size Chart

Order Code Cable Gland Size NPT Thread Size Thread Length Cable Dia. (mm) Across Flat Across Corner
CEMM-E1W16 0N B2 (3/8''NPT) 16 3/8'' 3/8'' 10 11.8 mm - 15.4 mm 24 26
CEMM-E1W20S 1N B2 (1/2''NPT) 20S 1/2'' 1/2'' 10 11.8 mm - 15.4 mm 24 26
CEMM-E1W20L 1N B2 (1/2''NPT) 20L 1/2'' 1/2'' 10 15 mm - 20.3 mm 27 30
CEMM-E1W25S 2N B2 (3/4''NPT) 25S 3/4'' 3/4'' 10 18.2 mm - 23.5 mm 32 35.5
CEMM-1W25L 2N B2 (3/4''NPT) 25L 3/4'' 3/4'' 10 21.5 mm - 27 mm 36 39.5
CEMM-E1W32S 3N B2 (1''NPT) 32S 1'' 1'' 10 26.3 mm - 31.8 mm 41 46
CEMM-E1W32L 3N B2 (1''NPT) 32L 1'' 1'' 10 28.3 mm - 33.8 mm 45 51
CEMM-E1W40S 4N B2 (1 1/4''NPT) 40S 1.1/4'' 1.1/4'' 10 32.7 mm - 39.4 mm 51 56
CEMM-E1W40L 4N B2 (1 1/4''NPT) 40L 1.1/4'' 1.1/4'' 15 33.8 mm - 40.5 mm 52 57.5
CEMM-E1W50S 5N B2 (1 1/2''NPT) 50S 1.1/2'' 1.1/2'' 15 40 mm - 46.7 mm 59 65
CEMM-E1W50L 5N B2 (1 1/2''NPT) 50L 1.1/2'' 1.1/2'' 15 45.8 mm - 52.8 mm 65.5 73
CEMM-E1W63S 6N B2 (2''NPT) 63S 2'' 2'' 15 52.3 mm - 60.5 mm 75 83
CEMM-E1W63L 6N B2 (2''NPT) 63L 2'' 2'' 15 58.6 mm - 66.8 mm 80 89
CEMM-E1W75S 7N B2 (2 1/2''NPT) 75S 2.1/2'' 2.1/2'' 15 63.5 mm - 72.5 mm 87 97
CEMM-E1W75L 7N B2 (2 1/2''NPT) 75L 2.1/2'' 2.1/2'' 15 69 mm - 78.5 mm 97 108
CEMM-E1W90L 8N B2 (3''NPT) 90L 3'' 3'' 20 78.5 mm - 91 mm 104 114.5
