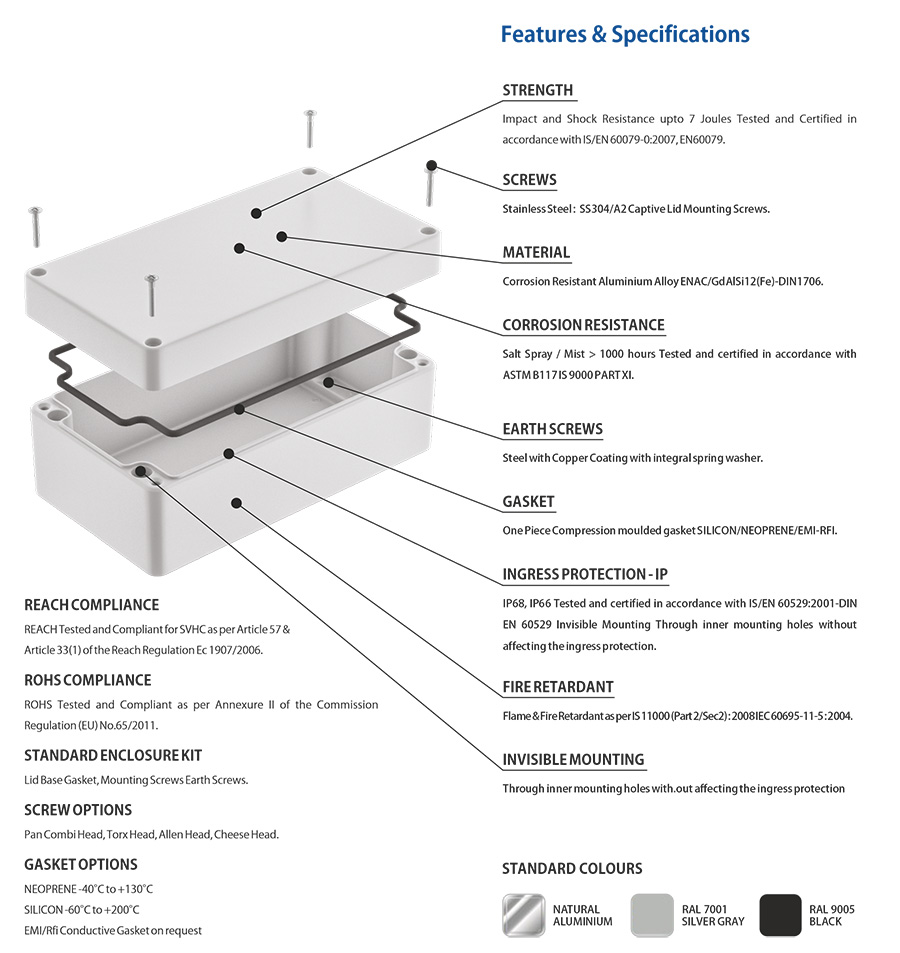

| Matrial | Corrosion resistant Aluminium Ally ENAC/GdAISi12 (DIN 1706). |
| Corrosion Resistasnce | >1000 hours of salt spray resistance,certified to ASTM B117 and IS 9000 |
| Ingress Protection | IP 68, IP 66 certified to IS/EN 60529. |
| Screws | Stainless Steel SS304 /A2. |
| Gasket | One Pices Compression- moulded ,available in Silicon,Neoprene,or EMI-RFI |
| Earth Screws | Steel with copper coating and integral spring washer |
| Part Number | Type | Size (mm) | Natural Finish Uncoated | RAL 7001 Silver Grey | RAL 9005 Black | Data Sheet (PDF) |
|---|---|---|---|---|---|---|
| CEMM AXL B 01 | AXL IP68 / IP66 | 45 x 50 x 30 | CEMM AXL B 01-0000 | CEMM AXL B 01-7001 | CEMM AXL B 01-9005 | View |
| CEMM AXL B 02 | AXL IP68 / IP66 | 64 x 58 x 34 | CEMM AXL B 02-0000 | CEMM AXL B 02-7001 | CEMM AXL B 02-9005 | View |
| CEMM AXL B 03 | AXL IP68 / IP66 | 98 x 64 x 34 | CEMM AXL B 03-0000 | CEMM AXL B 03-7001 | CEMM AXL B 03-9005 | View |
| CEMM AXL B 04 | AXL IP68 / IP66 | 75 x 80 x 57 | CEMM AXL B 04-0000 | CEMM AXL B 04-7001 | CEMM AXL B 04-9005 | View |
| CEMM AXL B 05 | AXL IP68 / IP66 | 125 x 80 x 57 | CEMM AXL B 05-0000 | CEMM AXL B 05-7001 | CEMM AXL B 05-9005 | View |
| CEMM AXL B 06 | AXL IP68 / IP66 | 175 x 80 x 57 | CEMM AXL B 06-0000 | CEMM AXL B 06-7001 | CEMM AXL B 06-9005 | View |
| CEMM AXL B 07 | AXL IP68 / IP66 | 250 x 80 x 57 | CEMM AXL B 07-0000 | CEMM AXL B 07-7001 | CEMM AXL B 07-9005 | View |
| CEMM AXL B 08 | AXL IP68 / IP66 | 100 x 100 x 81 | CEMM AXL B 08-0000 | CEMM AXL B 08-7001 | CEMM AXL B 08-9005 | View |
| CEMM AXL B 09 | AXL IP68 / IP66 | 120 x 122 x 81 | CEMM AXL B 09-0000 | CEMM AXL B 09-7001 | CEMM AXL B 09-9005 | View |
| CEMM AXL B 10 | AXL IP68 / IP66 | 120 x 122 x 91 | CEMM AXL B 10-0000 | CEMM AXL B 10-7001 | CEMM AXL B 10-9005 | View |
| CEMM AXL B 11 | AXL IP68 / IP66 | 140 x 140 x 91 | CEMM AXL B 11-0000 | CEMM AXL B 11-7001 | CEMM AXL B 11-9005 | View |
| CEMM AXL B 12 | AXL IP68 / IP66 | 160 x 160 x 91 | CEMM AXL B 12-0000 | CEMM AXL B 12-7001 | CEMM AXL B 12-9005 | View |
| CEMM AXL B 13 | AXL IP68 / IP66 | 180 x 180 x 101 | CEMM AXL B 13-0000 | CEMM AXL B 13-7001 | CEMM AXL B 13-9005 | View |

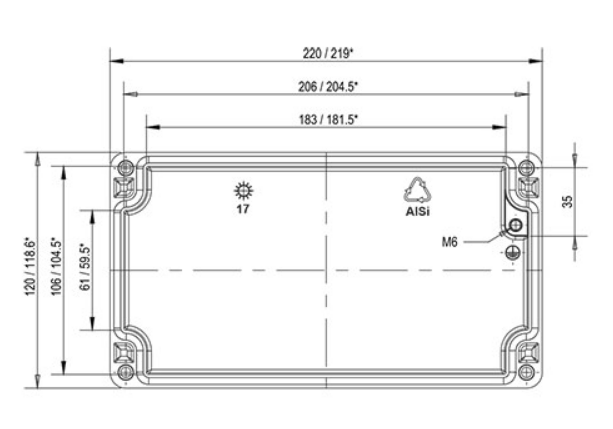

| CEMM AXL B 15 | AXL IP68 / IP66 | 220 x 120 x 81 | CEMM AXL B 15-0000 | CEMM AXL B 15-7001 | CEMM AXL B 15-9005 | View |
| CEMM AXL B 16 | AXL IP68 / IP66 | 220 x 120 x 91 | CEMM AXL B 16-0000 | CEMM AXL B 16-7001 | CEMM AXL B 16-9005 | View |
| CEMM AXL B 17 | AXL IP68 / IP66 | 260 x 160 x 91 | CEMM AXL B 17-0000 | CEMM AXL B 17-7001 | CEMM AXL B 17-9005 | View |
| CEMM AXL B 18 | AXL IP68 / IP66 | 330 x 230 x 111 | CEMM AXL B 18-0000 | CEMM AXL B 18-7001 | CEMM AXL B 18-9005 | View |
| CEMM AXL B 19 | AXL IP68 / IP66 | 400 x 230 x 180 | CEMM AXL B 19-0000 | CEMM AXL B 19-7001 | CEMM AXL B 19-9005 | View |
| CEMM AXL B 20 | AXL IP68 / IP66 | 360 x 122 x 80 | CEMM AXL B 20-0000 | CEMM AXL B 20-7001 | CEMM AXL B 20-9005 | View |
