Adaptors

Category : Accessories

Specifications
Type KEM, Metric-Metric
Gland Material Polyamide, Fibre Reinforced
Thread Metric
Operating Temperature (-40 °C - 100 °C)
Finish RAL 7035 (Light Grey)

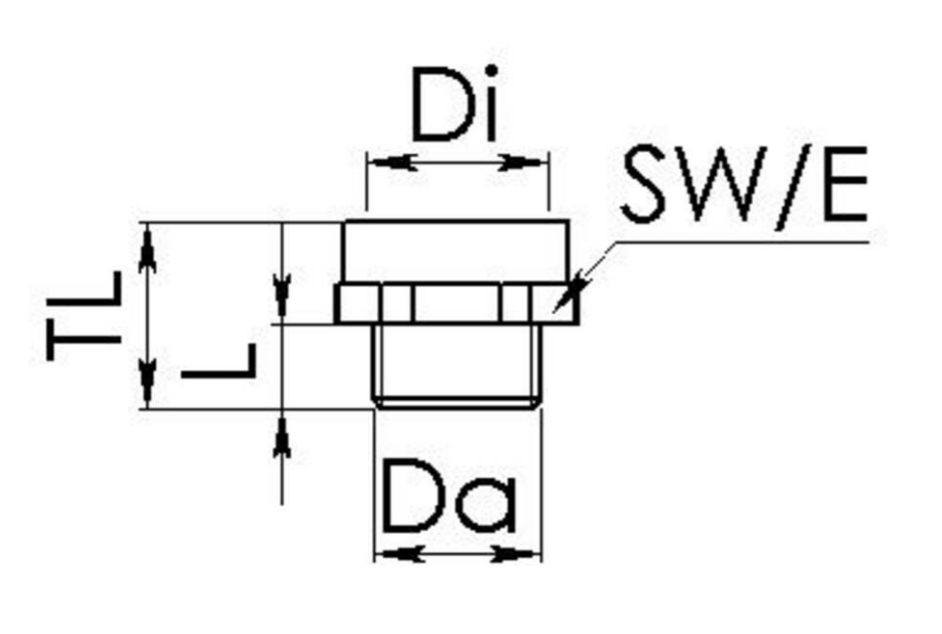

Size Chart

Order Code Color Connection thread size Outer Connection thread size Inner Thread Length (mm) Key Width (SW) Total Length (mm) Standard Packing (Pcs) Data Sheet (PDF)
CEKEM 12/16 LG - 10063570 RAL 7035 M 12x1,5 M 16x1,5 9 mm 20 mm 27 mm 100 View
CEKEM 16/20 LG - 10063571 RAL 7035 M 16x1,5 M 20x1,5 9 mm 24 mm 27 mm 100 View
CEKEM 20/25 LG - 10063572 RAL 7035 M 20x1,5 M 25x1,5 9 mm 29 mm 27 mm 100 View
CEKEM 25/32 LG - 10063573 RAL 7035 M 25x1,5 M 32x1,5 10 mm 36 mm 28 mm 100 View
CEKEM 32/40 LG - 10063574 RAL 7035 M 32x1,5 M 40x1,5 12 mm 46 mm 30 mm 50 View
CEKEM 40/50 LG - 10063575 RAL 7035 M 40x1,5 M 50x1,5 12 mm 55 mm 30 mm 25 View
CEKEM 50/63 LG - 10063576 RAL 7035 M 50x1,5 M 63x1,5 14 mm 68 mm 32 mm 5 View
