Adaptor Stainless Steel (SS316L) (NPT to Metric)

Category : Adaptor

Specifications
IP Rating IP68
Certificates IECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type NPT to Metric
Protection Type Ex d, Ex e, Ex t
Material Stainless Steel (SS316L)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

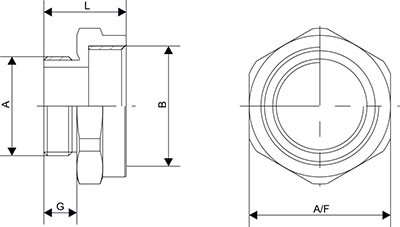

Size Chart

Order Code A B L G A/F Data Sheet (PDF)
CEMM-EX-AD0N0M X6 (3/8''NPT to M16) 3/8''NPT M16X1.5 33 16 25 View
CEMM-EX-AD0N1M X6 (3/8''NPT to M20) 3/8''NPT M20X1.5 33 16 25 View
CEMM-EX-AD1N1M X6 (1/2''NPT to M20) 1/2''NPT M20X1.5 38 21 25 View
CEMM-EX-AD1N2M X6 (1/2''NPT to M25) 1/2''NPT M25X1.5 39 21 30 View
CEMM-EX-AD1N3M X6 (1/2''NPT to M32) 1/2''NPT M32X1.5 39 21 36 View
CEMM-EX-AD2N2M X6 (3/4''NPT to M25) 3/4''NPT M25X1.5 39 21 30 View
CEMM-EX-AD2N3M X6 (3/4''NPT to M32) 3/4''NPT M32X1.5 39 21 36 View
CEMM-EX-AD2N4M X6 (3/4''NPT to M40) 3/4''NPT M40X1.5 39 21 45 View
CEMM-EX-AD3N3M X6 (1''NPT to M32) 1''NPT M32X1.5 44 26 36 View
CEMM-EX-AD3N4M X6 (1''NPT to M40) 1''NPT M40X1.5 44 26 45 View
CEMM-EX-AD3N5M X6 (1/4''NPT to M50) 1.1/4''NPT M50X1.5 44 26 55 View
CEMM-EX-AD4N4M X6 (1 1/2''NPT to M40) 1.1/2''NPT M40X1.5 44 26 45 View
CEMM-EX-AD4N5M X6 (1 1/2''NPT to M50) 1.1/2''NPT M50X1.5 44 26 55 View
CEMM-EX-AD4N6M X6 (1 1/4''NPT to M25) 1.1/4''NPT M63X1.5 44 26 68 View
CEMM-EX-AD5N5M X6 (1 1/2''NPT to M50) 1.1/2''NPT M50X1.5 45 27 55 View
CEMM-EX-AD5N6M X6 (1 1/2''NPT to M63) 1.1/2''NPT M63X1.5 45 27 68 View
CEMM-EX-AD5N7M X6 (1 1/2''NPT to M75) 1.1/2''NPT M75X1.5 50 27 80 View
CEMM-EX-AD6N6M X6 (2''NPT to M63) 2''NPT M63X1.5 48 28 68 View
CEMM-EX-AD6N7M X6 (2''NPT to M75) 2''NPT M75X1.5 51 28 80 View
CEMM-EX-AD6N8M X6 (2''NPT to M90) 2''NPT M90X1.5 65 41 95 View
CEMM-EX-AD7N7M X6 (2 1/2''NPT to M75) 2.1/2''NPT M75X1.5 65 41 80 View
CEMM-EX-AD7N8M X6 (2 1/2''NPT to M90) 2.1/2''NPT M90X1.5 65 41 95 View
CEMM-EX-AD7N9M X6 ( 2 1/2''NPT to M100) 2.1/2''NPT M100X1.5 65 41 105 View
CEMM-EX-AD8N8M X6 (3''NPT to M90) 3''NPT M90X1.5 66 42 95 View
CEMM-EX-AD8N9M X6 (3''NPT to M100) 3''NPT M100X1.5 66 42 105 View
CEMM-EX-AD9N9M X6 (3''NPT to M100) 3''NPT M100X1.5 70 45 120 View
