Adaptor Brass Nickle Plated (BNP) (NPT to NPT)

Category : Adaptor

Specifications
IP Rating IP68
Certificates IECEx PRE 20.0123X
ATEX Presafe 20 ATEX 24571X
EAC RU C-IN.AA71.B.00212/20
Thread Type NPT to NPT
Protection Type Ex d, Ex e, Ex t
Material Brass Nickle Plated (BNP)
Ambient Temperature IECEx/ATEX : -55° C < Ta < +160° C EAC: -60° C < Ta < +130° C

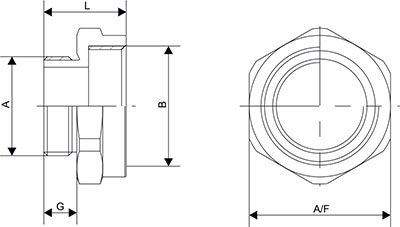

Size Chart

Order Code A B L G A/F Data Sheet (PDF)
CEMM-EX-AD0N1N B2 (3/8''NPT to 1/2''NPT) 3/8''NPT 1/2''NPT 37 16 25 View
CEMM-EX-AD0N2N B2 (3/8''NPT to 3/4''NPT) 3/8''NPT 3/4''NPT 42 21 30 View
CEMM-EX-AD1N1N B2 (1/2''NPT to 1/2''NPT) 1/2''NPT 1/2''NPT 42 21 25 View
CEMM-EX-AD1N2N B2 (1/2''NPT to 3/4''NPT) 1/2''NPT 3/4''NPT 42 21 30 View
CEMM-EX-AD2N2N B2 (3/4''NPT to 3/4''NPT) 3/4''NPT 3/4''NPT 42 21 30 View
CEMM-EX-AD2N3N B2 (3/4''NPT to 1''NPT) 3/4''NPT 1''NPT 46 21 36 View
CEMM-EX-AD3N3N B2 (1''NPT to 1''NPT) 1''NPT 1''NPT 51 26 36 View
CEMM-EX-AD3N4N B2 (1''NPT to 1 1/4''NPT) 1''NPT 1 1/4''NPT 51 26 45 View
CEMM-EX-AD3N5N B2 (1''NPT to 1 1/2''NPT) 1''NPT 1 1/2''NPT 53 26 50 View
CEMM-EX-AD4N4N B2 (1 1/4''NPT to 1 1/4''NPT) 1 1/4''NPT 1 1/4''NPT 51 26 45 View
CEMM-EX-AD4N5N B2 (1 1/4''NPT to 1 1/2''NPT) 1 1/4''NPT 1 1/2''NPT 53 26 50 View
CEMM-EX-AD4N6N B2 (1 1/4''NPT to 2''NPT) 1 1/4''NPT 2''NPT 53 26 65 View
CEMM-EX-AD5N5N B2 (1 1/2''NPT to 1 1/2''NPT) 1 1/2''NPT 1 1/2''NPT 54 27 50 View
CEMM-EX-AD5N6N B2 (1 1/2''NPT to 2''NPT) 1 1/2''NPT 2''NPT 54 27 65 View
CEMM-EX-AD5N7N B2 (1 1/2''NPT to 2 1/2''NPT) 1 1/2''NPT 2 1/2''NPT 58 27 80 View
CEMM-EX-AD6N6N B2 (2'' NPT to 2''NPT) 2''NPT 2''NPT 55 28 65 View
CEMM-EX-AD6N7N B2 (2''NPT to 2 1/2''NPT) 2''NPT 2 1/2''NPT 59 28 80 View
CEMM-EX-AD6N8N B2 (2''NPT to 3''NPT) 2''NPT 3''NPT 59 28 95 View
CEMM-EX-AD7N7N B2 (2 1/2''NPT to 2 1/2''NPT) 2 1/2''NPT 2 1/2''NPT 73 41 80 View
CEMM-EX-AD7N8N B2 (2 1/2''NPT to 3''NPT) 2 1/2''NPT 3''NPT 73 41 95 View
CEMM-EX-AD7N9N B2 (2 1/2''NPT to 4''NPT) 2 1/2''NPT 4''NPT 73 41 120 View
CEMM-EX-AD8N8N B2 (3''NPT to 3''NPT) 3''NPT 3''NPT 74 42 95 View
CEMM-EX-AD8N9N B2 (3''NPT to 4''NPT) 3''NPT 4''NPT 74 42 120 View
